OVERLAPPING GATHERING CHAINS

Drago’s aggressive overlapping gathering chains are positioned farther out front to grab and secure stalks for processing.

• Deliver exceptional performance in lodged and downed corn.
• Drago chains angle apart to reduce stalk breakage and limit yield-robbing trash from entering the combine.
• Drago has the largest idler sprockets to ease chain crimping, reduce wear and extend the life of the gathering chains.
• Drago’s idler sprockets are solid to avoid clogging with dirt and debris.

LARGEST AUGER FOR LESS BACKFEED

With its 20-inch diameter, the Drago GT has the largest auger in the industry for more aggressive in-feeding. Its larger center tube is stronger and blocks the window of escape from the feeder house.

SELF-ADJUSTING DECK PLATES

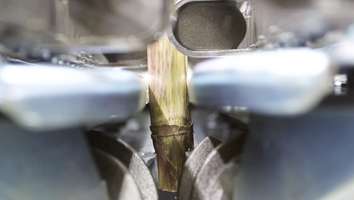

Drago corn heads feature deck plates that independently and automatically self-adjust to stalks entering each row unit minimizing gaps and reducing kernel and small ear loss. University research demonstrates you can lose one to four bu/acre for every 1/8-inch of deck plate misadjustment.

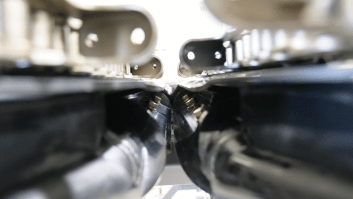

• Antiquated operator-controlled hydraulic deck plate technology is hopelessly incapable of adjusting to stalk variability and limiting yield loss.

• Because hydraulic deck plates adjust every row to the same gap, the wider the corn head, the greater the potential for kernel loss

WATCH DRAGO DECK PLATES WORK IN REAL TIME

“Ear shocks” placed under Drago GT deck plates help absorb the impact of ears hitting them as they are pulled down by knife rollers.

Only Drago offers QuadSuspension technology to reduce yield loss from ear bounce in higher-moisture corn and butt shelling in late-season dry corn.

LEARN MORE ABOUT THE DRAGO GT WITH QUADSUSPENSION™

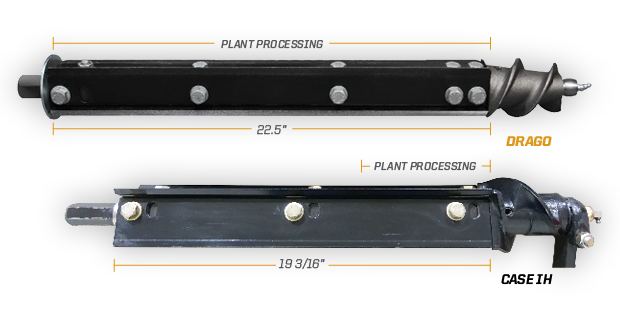

Drago knife rollers feature a smaller diameter and the longest length in the industry.

• Having the longest knife roller with a smaller diameter reduces tip speed for less ear bounce, greater ear retention and reduced butt-shelling.
• Longer knife rollers allow added processing time and a safer ear removal zone.
• Ground speed is not sacrificed.

GEAR-DRIVEN

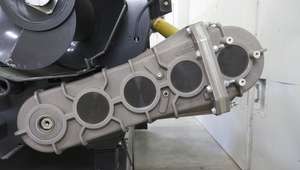

Drago corn heads are powered by the Endura Drive™ system, which is completely gear-driven for maximum power delivery.

• Requires less maintenance or replacement.

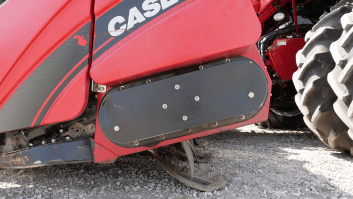

• Case IH chains are less-efficient – wear and stretch over time.

GEARBOXES

No other gearbox is built to perform or last like a Drago gearbox.

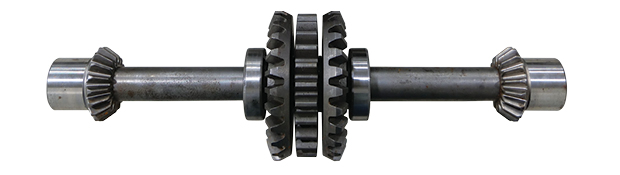

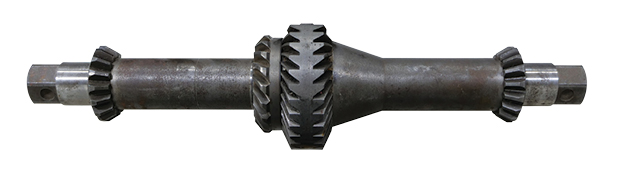

• The Drago bull gear itself is more robust – a solid, high quality steel gear instead of the Case IH with three separate gears that must be shimmed together by the customer.

• Drago’s spiral-cut gears are an industry-first. By design, they always have two teeth engaged to transmit power more efficiently and increase gear life.

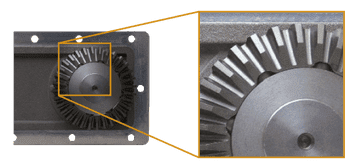

Drago introduced a multi-component slip-clutch design, called Precise Clutch Technology™, with four different load operations rather than a single-clutch-for-the-highest-load design.

Drago component protection means the fence post that stops the knife rollers doesn’t have to ruin the gathering chains, drives and chopping gearbox, too.
