Drago Corn Head Options

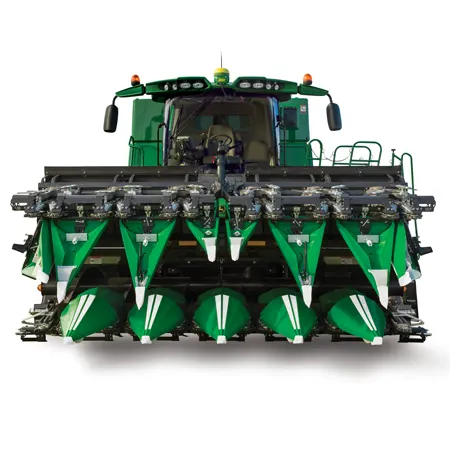

Increase your speed of going field to field with the folding option. Drago offers more folding sizes than any other brand. The common sizes are listed in the ‘Specifications’ section of each product page.

Drago poly comes standard in black, a neutral color fit for any combine. It is also available to order in green or red.

Single Chop for Flexible Needs: The single chop option delivers standard residue sizing with an on-off lever for field-to-field flexibility. A straight-power gearbox — no bevel gears — cuts horsepower needs.

Twin Chop for Exceptional Sizing: The industry-first Twin Chop uses counter-rotating knives to cut and shatter stalks for faster, more complete residue breakdown. It shares the single chop’s efficient gearbox design for reduced horsepower demand.

For narrow-row (20–22″) or twin-row corn, or 30″ rows with a wide, heavy plant. If your corn is crowding the head, this is the kit for you.

Optional dividers between rows under the head reduce potential windrowing that can occur on chopping heads.

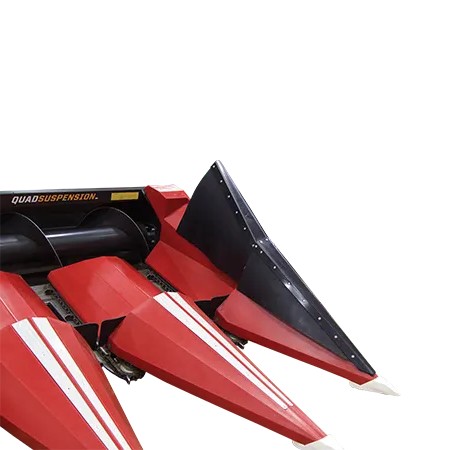

For corn with a high ear set, or when ears drop over the lateral divider before the row unit can take them. The tall divider carries those ears in.

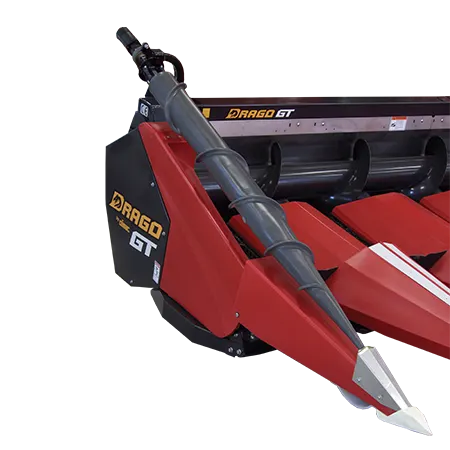

Keeps down corn from leaning over the side and losing hanging ears. Advantages compared to the competition are that our auger starts at the point rather than the back bonnet and angles back toward the center of the row. These features allow immediate correction and straight pull down of the stalk into the rolls. It has a simple suspension system that allows the snoot to float across the ground.

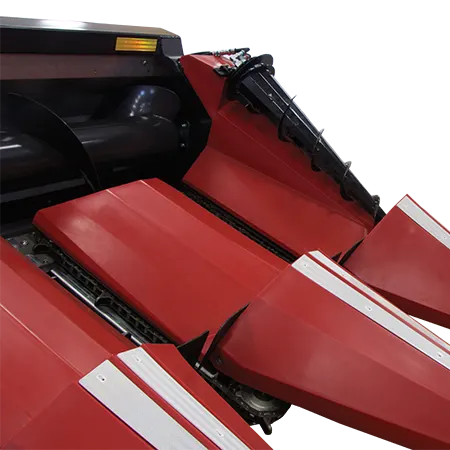

A simpler down corn auger that only goes to the back of the lateral snoot. It offers a more versatile function in normal to less severe down corn.

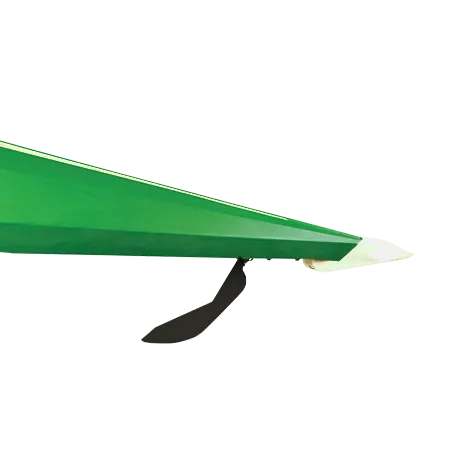

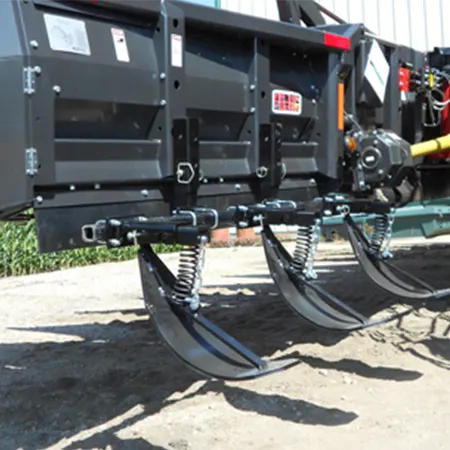

Accurately maintain header ground clearance with HeadSight’s state of the art system, which is proven to reduce yield losses.

Protects your equipment from excessive tire wear by pushing the abrasive top of the stalk to the ground.

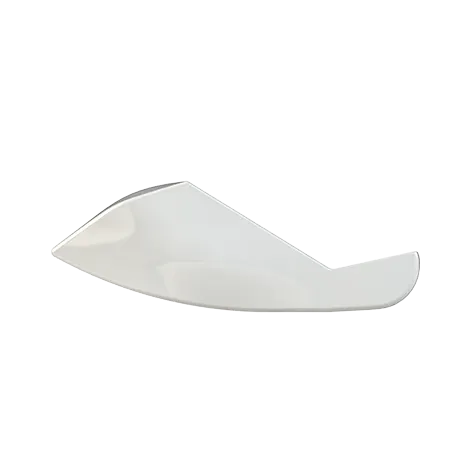

A point that is less aggressive for normal standing corn. This point became standard for all 2018 GT and Series II models and can be added to all previous GT and Series II models.

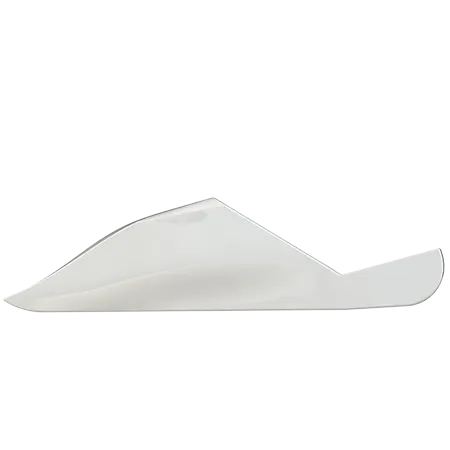

A more aggressive point to help get under down corn. This point was standard on all GT and Series II models prior to 2018 and now is available to order at the dealers parts desk.

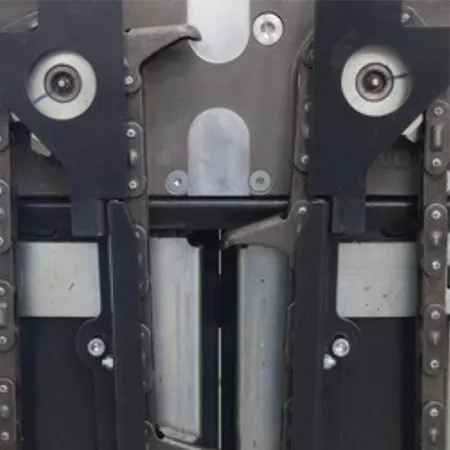

Improves feeding in high trash conditions for the Drago GT by using a more aggressive chain that has a longer chain lug to help clear trash into the auger. You have the option to use them on the center 4 rows or across the whole head.

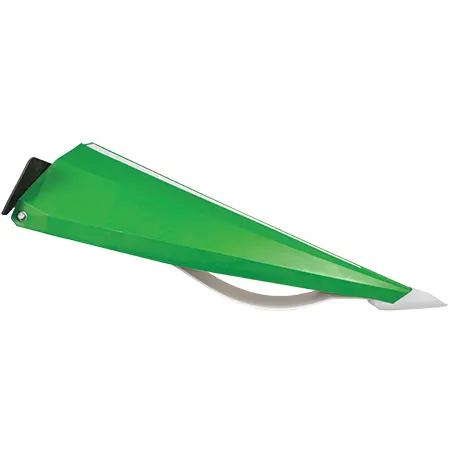

For use in irrigated areas. Bigger bubble protects snoots in fields with pivot tracks.

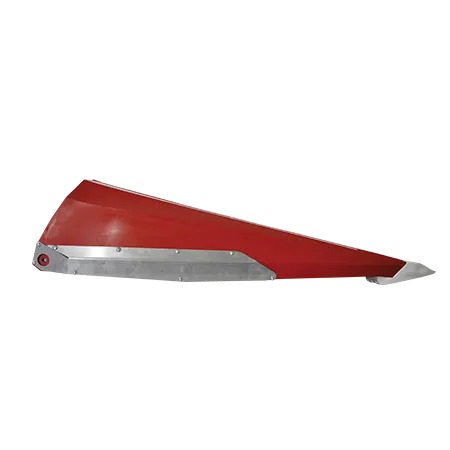

Protects poly from excessive wear in twin row corn.

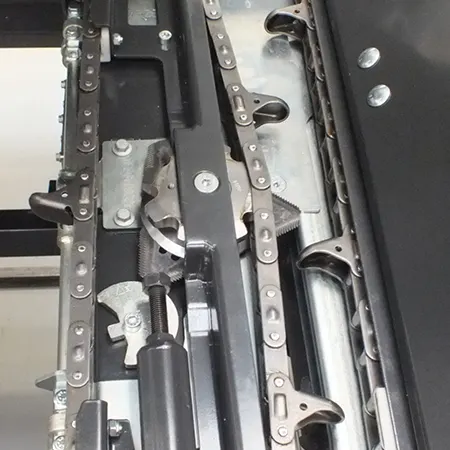

This system uses three spinning blades that are driven by the gathering chain for a smoother separation of the sunflower head from the stalk.

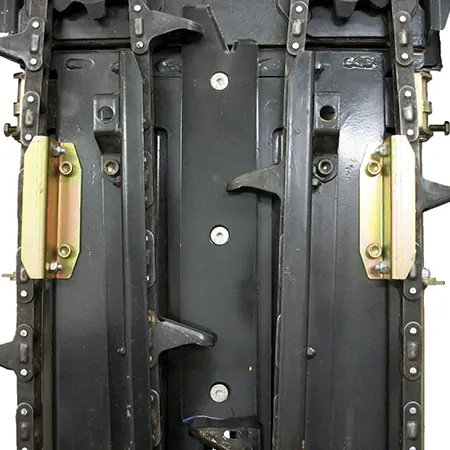

Allows your Drago to be a dual purpose harvest machine with ease. The knife slides up between the two deck plates and locks into place by tightening just three bolts.

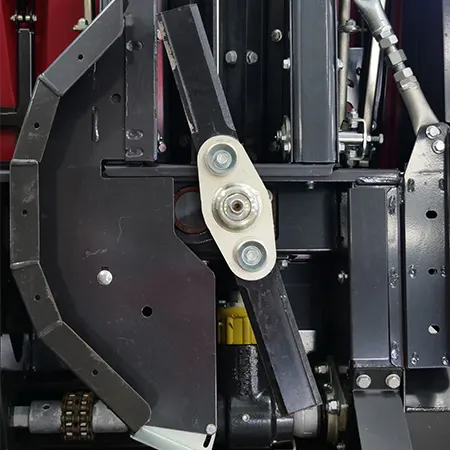

Provides the highest level of residue sizing in Drago models Series I and II, decreasing the size of plant material left in the field. Only available on 30” rows and wider. Combines the stationary knife with a half-moon shield keeping material in longer to achieve a finer cut. The Turbo Chop Shield also redirects the flow of material reducing any windrow effect.
