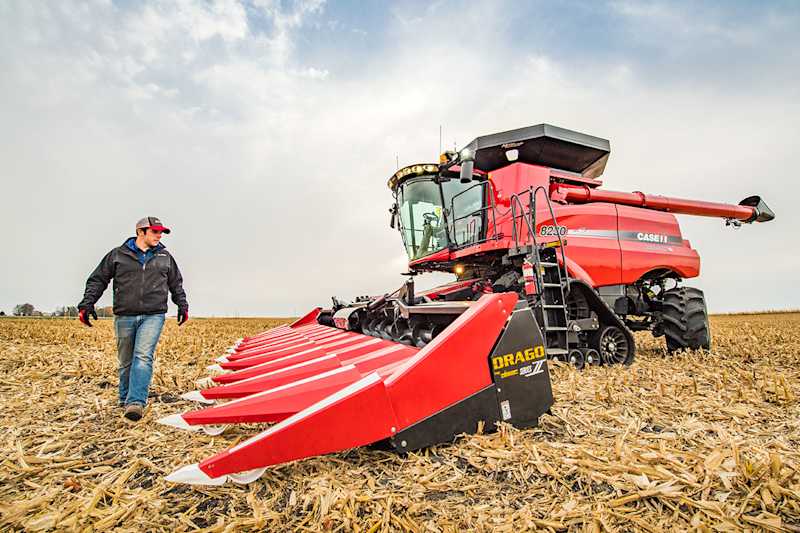

THE DRAGO SERIES II

The Drago II corn head is specifically designed and engineered to harvest today’s genetics — to capture more yield with unsurpassed durability and ease of maintenance. Drago II is a product of Olimac — a global company, passionately dedicated to creating the highest-quality, best-performing corn heads in the industry.

AFTER ALL YOU DO TO GROW MORE CORN, THIS IS HOW TO BRING MORE HOME.

THE HEART OF KERNEL CAPTURE TECHNOLOGY™:

Getting more out of your combine starts with getting more in.

AUTOMATIC SELF-ADJUSTING DECK PLATES

Low-maintenance, spring-loaded deck plate pistons constantly apply pressure to incoming stalks, automatically minimizing plate gap where yield loss can be significant.

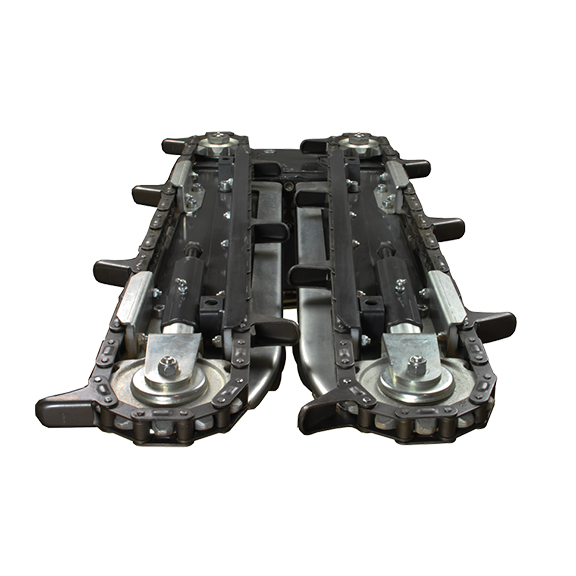

INDEPENDENT ROW UNITS

Deck plate gaps, both in-row and row-to-row, are determined by the size of stalks running through them, compared to hydraulic systems that set the same plate gap for every row unit.

ANGLED CHAIN DESIGN

Gathering chains angle apart — front to back — to release stalks and avoid excessive trash from entering the combine.

POLY CHAIN GUIDES

Each gathering chain has five poly chain guides that extend the life of the chain and are reversible after one side has worn.

OVERLAPPING GATHERING CHAINS

Oversized idler sprockets, which reduce chain wear, are forward-placed, allowing overlapping chain fingers to grab and capture stalks for processing — a highly valued feature when harvesting downed corn.

AUTOMATIC SELF-ADJUSTING DECK PLATES

University research shows that a gap of only 1/8 inch between stalks and deck plates can cause measurable yield loss to occur.* And considering today’s increasingly higher plant populations, the amount of plant material corn heads must process, and hybrids that dry down faster, the potential for yield loss increases, too. On every farm — at every harvest — the Drago Automatic Self-Adjusting Deck Plates prove their value in capturing more of the corn you’ve grown. *Graeme Quick field research, Iowa State University.

*Graeme Quick field research, Iowa State University.

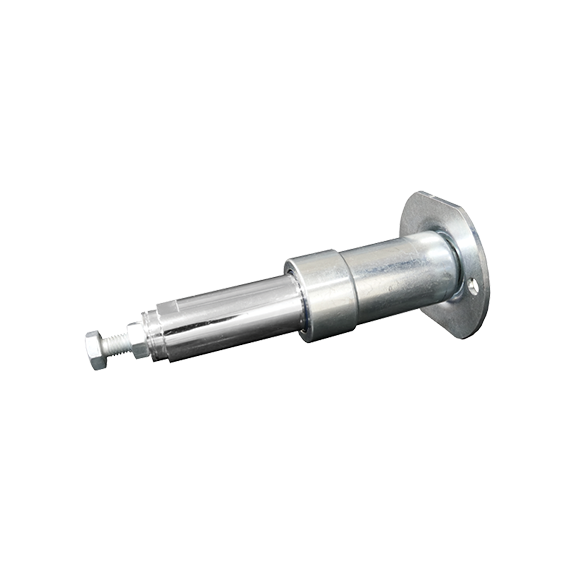

SPRING-LOADED DECK PLATE PISTONS

The spring-loaded deck plate piston design is simple and requires little maintenance.

ONE ON ONE WALKTHROUGH:

AUTOMATIC SELF ADJUSTING DECK PLATES

Understanding Automatic Self-Adjusting Deck Plates.

THE HEART OF KERNEL CAPTURE TECHNOLOGY™:

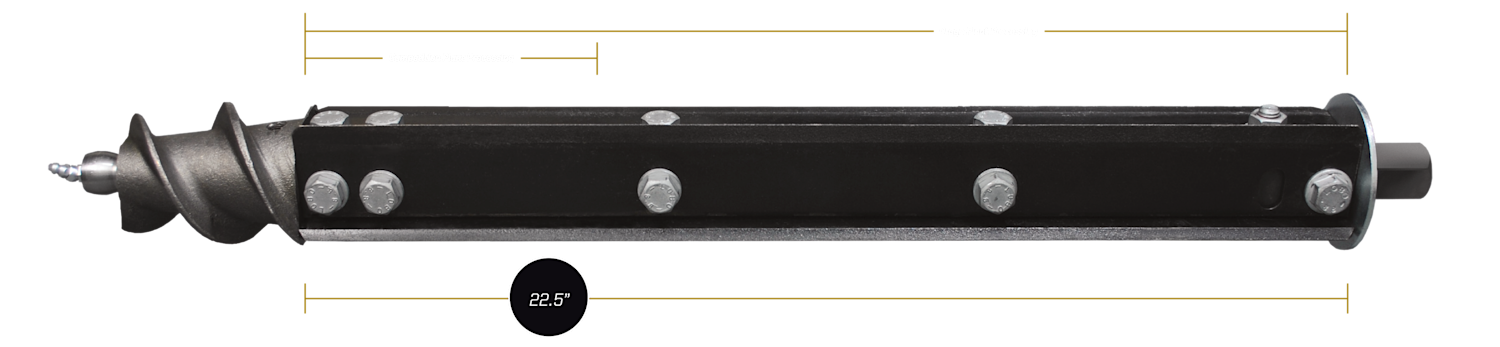

THE LONGER THE KNIFE ROLLER, THE BETTER.

The industry’s longest knife rollers combine with a smaller diameter for added plant processing time. The extra time means roller tips can run slower, resulting in less ear bounce – less ear loss – without having to reduce combine speed. No other knife roller measures up to the performance of a Drago knife roller.

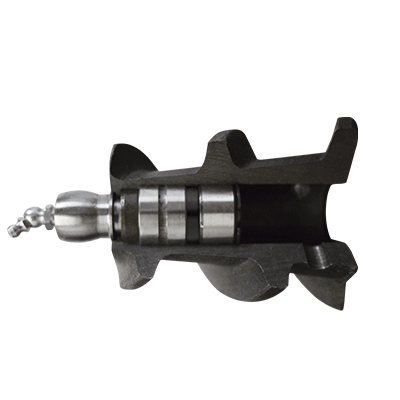

NOSE CONE BEARINGS

Drago not only supports its knife rollers out front, but has two bearings and a grease bank built right into the nose cone itself. A dirt barrier is milled in to protect seals and bearings when tips are closer to the soil, as in down-corn situations.

KNIFE ROLLER SUPPORTS

Drago builds bracket supports to keep knife rollers from spreading and breaking.

SLOWER TIP SPEED

Having the longest knife roller with a smaller diameter reduces tip speed for less ear bounce, greater ear retention and reduced butt-shelling.

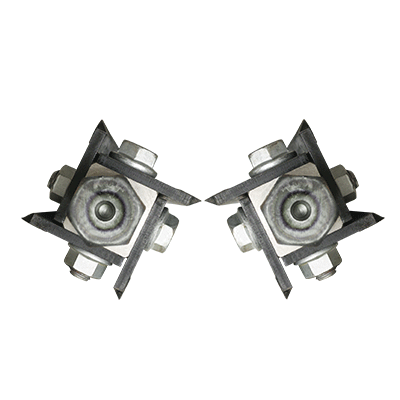

REDUCING EAR LOSS

A knife-to-knife design pinches, pulls and opens up — allowing plants to move farther back into the corn head before the ear is removed.

ONE ON ONE WALKTHROUGH:

LONGER STALK ROLLER

Understanding Automatic Self-Adjusting Deck Plates.

THE HEART OF KERNEL CAPTURE TECHNOLOGY™:

Lowest Profile Angle

The Drago II corn head features a working angle of 17-23 degrees — the flattest in the industry. The low angle allows ears to move up the row unit with ease and reduce ear loss out the front. This lower working angle allows the Drago II to work through downed corn more efficiently, too.

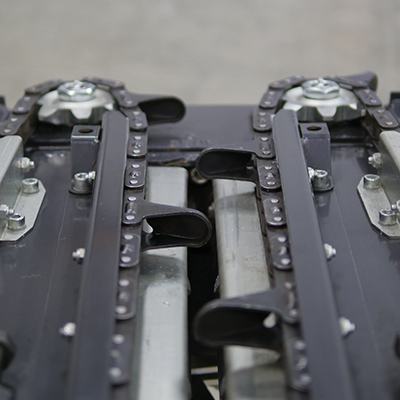

Aggressive Feeding Blocks

This option can be simply added to the gathering chain guide rails to increase chain overlap and aggressiveness at the rear of the row unit to improve feeding in tough, trashy conditions.

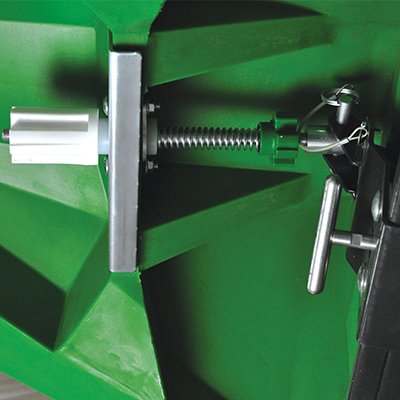

Spring-Loaded Snout- Pressure

This feature allows you to apply and adjust down pressure to your snouts, keeping your points under downed corn.

Micro-Adjustable Snouts

Wrench-free knobs for both snout angle and spring pressure adjustments offer quick and easy micro-adjustments when you need it.

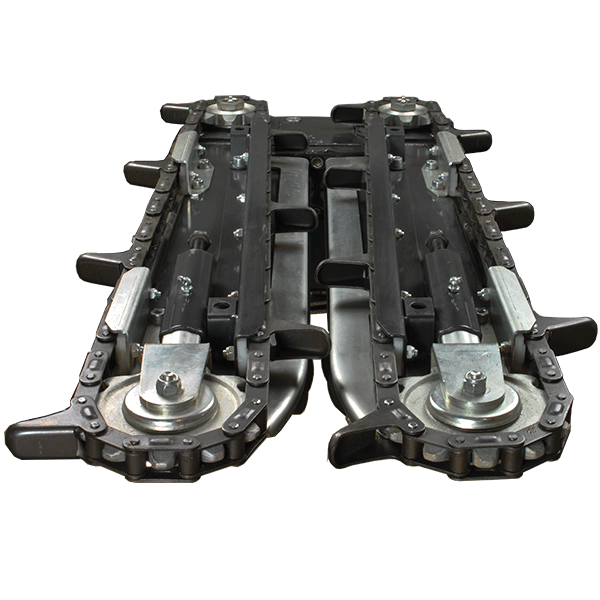

AGGRESSIVE OVERLAPPING GATHERING CHAINS

Drago gathering chains, which ride on oversized sprockets to reduce wear, are placed in front of knife rollers where overlapping chain fingers grab and capture stalks for processing. This feature is highly valued when harvesting downed corn.

ANGLED SEPERATION FOR LESS TRASH

Drago’s gathering chains angle apart — front to back — so stalks are not broken off when being pulled down and avoiding excessive trash from entering the combine.

ONE ON ONE WALKTHROUGH:

AGGRESSIVE GATHERING CHAINS

Walkthrough of the Drago row unit and how it can can harvest in a wide range of conditions.

THE HEART OF KERNEL CAPTURE TECHNOLOGY™:

Chopper placement makes a difference for those who put kernel capture first.

The Drago II “Yield First” design features a rear-mounted chopping system that is unlike any other brand. The chopping system — placed well back on each row unit — allows ears to be harvested before the stalk is chopped. This is especially beneficial when plants have poor ear retention and when harvesting downed corn. The Drago difference isn’t just that stalks get chopped, but when they are chopped.

Efficient Design

The Drago II’s rear-mounted chopper system is more efficient because of the short drive train, and because it is directly driven from the main gearbox. Other corn heads with a forward-mounted chopping design require more gears, increasing horsepower consumption.

Balanced Benefits with Ease of Maintenance

Drago’s “Yield First” design provides an optimum balance of maximized harvesting and quality chopping in both optimal and tough conditions. Chopper maintenance is quite simple. Drago knives feature a tungsten carbide edge and are easily reversed.

Add a Chopper at Any Time

You have the option to add a chopper later without having to trade corn heads. Installation and removal of the gearbox is completed with just four bolts and a gasket, minimizing replacement downtime in the field.

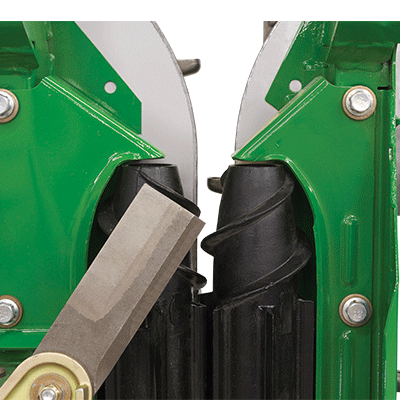

Controlled Chopping

Controlled Chopping The Drago II chopping system is designed to deliver optimum chop quality without impacting yield. Unlike other brands, Drago chopping blades are placed behind knife rollers so they don’t strike the plant until it is under control from the pinch received from the knife rollers. This is crucial, so no matter what conditions you face — from leaning to downed corn — yield is not sacrificed.

Turbo Chop Shield

This option helps make chop residue finer by keeping it inside the shield longer. This is a simple and effective option that can be added later to any Drago corn head.

ONE ON ONE WALKTHROUGH:

DRAGO CHOPPING SYSTEM

Walkthrough of the chopping capabilities of the Drago II Corn Head

maintenance • parts • service

THE DRAGO II CORN HEAD ISN’T JUST BUILT TO WORK BETTER,
IT’S BUILT TO WORK LONGER.

When you build a corn head for harvest efficiency, you also know the importance of a timely harvest. We know there is never a good time for a corn head not to perform, which is why Drago corn heads are engineered for harvest dependability. When service is needed, having a complete and available supply of parts at Dragotec USA is a priority. We are so confident of Drago parts supply, in fact, that during harvest, if any part is not available from any of our North American distribution centers — including your local authorized Drago dealer, regional part hubs or our North American headquarters – the replacement part and shipping are free. Ask about our “We’ve Got Your Back” guarantee.

Confidence in available parts and knowledgeable service.

Along with parts availability, you’ll find authorized Drago dealers are trained and fully knowledgeable in servicing the Drago II corn head. We also provide a full set of video instructions for those who desire to service and maintain the Drago corn head on their own.

ISO 9000 CERTIFIED

Every part is built for durability and tested for precision. That’s every part, not every 10th part like other corn head brands.

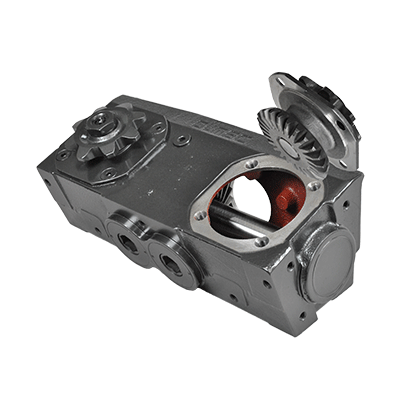

Main Gearbox

Drago is recognized for its precision engineering and manufacturing. It’s the only corn head with gearboxes milled so precisely that no shimming is necessary, providing easy removal and service.

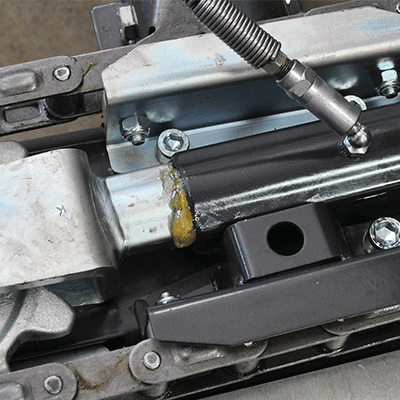

Seize-Free Tensioner

Drago’s gathering chain tensioner can be greased to act as a filler and seals out dirt and debris. Allowing the tensioner to work freely all season long increases the life of the gathering chain.
